GH4169 is a Fe-Ni-Cr-based precipitation hardening deformation superalloy. The long-term use temperature range is -253~650℃, and the short-term use temperature is 800℃. It has high strength, good toughness and good toughness in high and low temperature environments under 650℃. It is resistant to oxidation and corrosion. And good processing performance and welding performance and long-term structural stability. It can manufacture various parts with complicated shapes, and has been widely used in the above-mentioned temperature range in aerospace, nuclear energy, petroleum industry and extrusion dies.

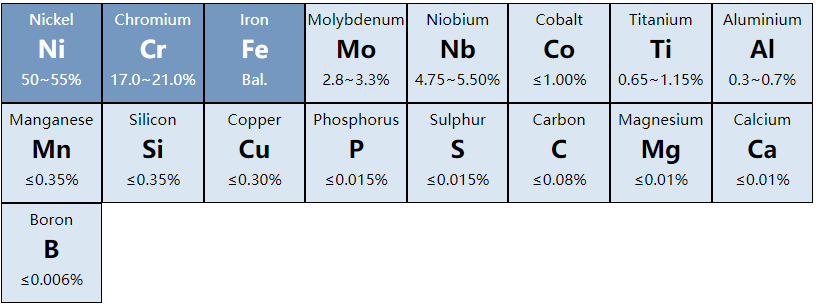

GH4169 chemical composition
GH4169 coefficient of linear expansion
GH4169 physical properties
Density: 0.296 lbs/in3, 8.19 g/cm3
Specific Heat: Btu/lb ° F (J/kg ° C):
At 70 ° F (21 ° C): 0.104 (435)
Mean Coefficient of Thermal Expansion: in/in!° (mm/m/° C) 70 - 212 ° F (20 - 100 ° C): 7.6 x 10-5 (13.0)
Modulus of Elasticity: KSI (MPa)
29.7 x 103 (204.9 x 103) in tension
Magnetic Permeability, H = 200 Oersteds:
Annealed: 1.013
Annealed and Aged: 1.011
Melting Range: 2300 - 2437 ° F (1260 - 1336 ° C)
FORMS
Coil - Strip, Foil, Ribbon Wire - Profile, Round, Flat, Square

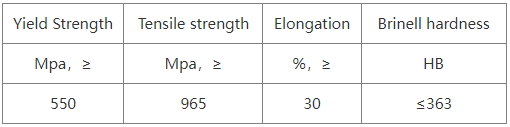

Mechanical properties of GH4169 alloy at room temperature
Our services
We can cut and bend steel plate according to customer's requriement or drawing,
packaging according to customers' request.
Application
GH4169 nickel alloy Inconel 718® in a variety of forms, including:
Bar
Wire
Sheet
Plate
Forgings
Pipe fittings
Flanges
Seamless & Welded pipe
Seamless Tube & Welded tube
Weld Rod
Nickel alloy Inconel 718® is usually provided in the solution annealed condition (AMS 5662 & AMS 5596), but can be also be supplied in the aged hardened or precipitation heat treated condition (AMS 5663 & AMS 5597) prior to forming.
Inconel 718® strip is available from .001" to .063" in 12" wide coils. 24" wide strip is available in some gauges. Minimum production quantities may apply.
Inconel 718® sheet is available from .012 - .156" thickness in 36" & 48" wide sheets.
Inconel 718® plate is available from .1875" thick to 4"
Inconel 718® tube is available in seamless and welded construction. Standard tube sizes are available, but we also can have small diameter tubes fabricated or re-drawn with close tolerances in small production runs.
