1J50 Precision Alloy

(Common Name: Ni50, E11a, 50H, Hy-Ra49, PB)

1J50 is a nickel–iron magnetic alloy, with about 50% nickel and 48% iron content. It is derived in accordance with permalloy. It has characteristics of high permeability and high saturation magnetic flux density.

Alloy melting in a vacuum medium, cast into ingots, after hot forging blanks made of sheet metal, and then after hot rolling, pickling, surface treatment, cold rolling into finished products.

1J50 Iron-nickel alloy( soft magnetic alloy) mostly in an alternating magnetic field used mainly for high magnetic yoke, sensitive relays, low-loss micro-motor, small power transformers, pulse transformer, transistor switches, magnetic amplifier magnetic modulator, sensitive signal input and output transformers, magnetic heading aviation instrumentation magnetic sensor, magnetic susceptibility measurement instrument components, precision meter movable piece and the stator magnetic shielding and magnetic temperature compensation element.

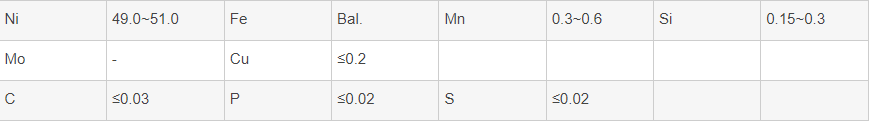

Chemical composition of 1J50 precision alloy

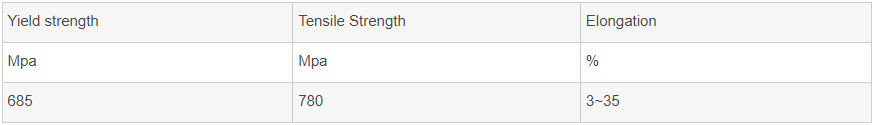

Typical Mechanical properties of 1J50

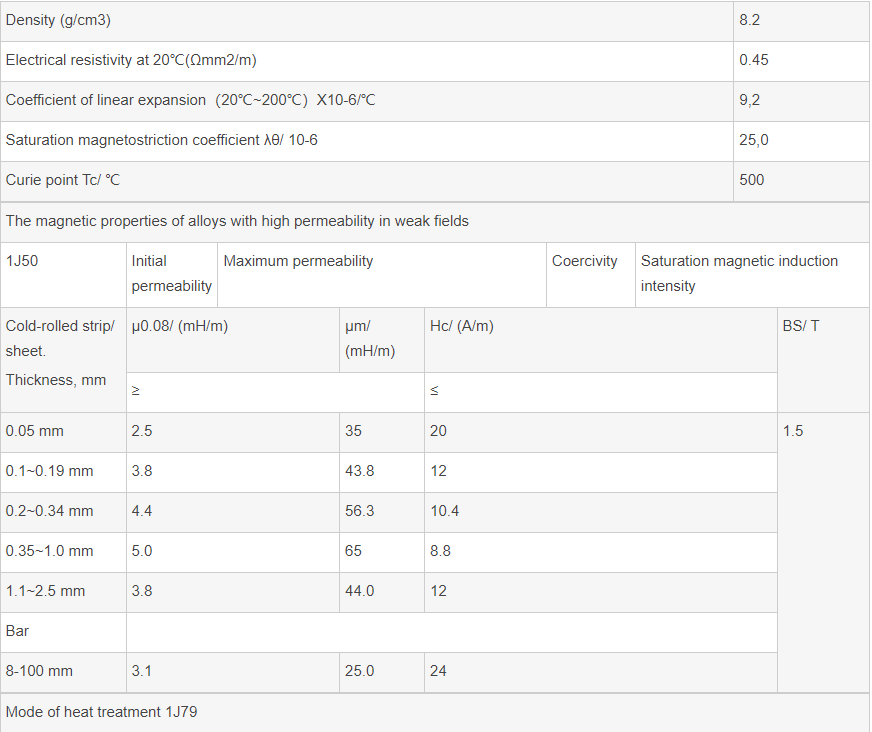

Typical Physical properties of 1J50

1J50 precision alloy uses

1J50 magnetic alloy, a Ni-Fe soft magnetic alloy, mainly applies to high magnetic conductivity yoke iron, sensitive relay, low loss micromotor, low power transformer, pulse transformer, transistor switch, magnetic amplifier, magnetic modulator, sensitive signal input and output transformer, magnetic sensor of aviation magnetic heading instrument, magnetic sensitive element of magnetic measuring instrument, stator and movable plate of precision electric meter, magnetic shielding and magnetic temperature compensating elements.
