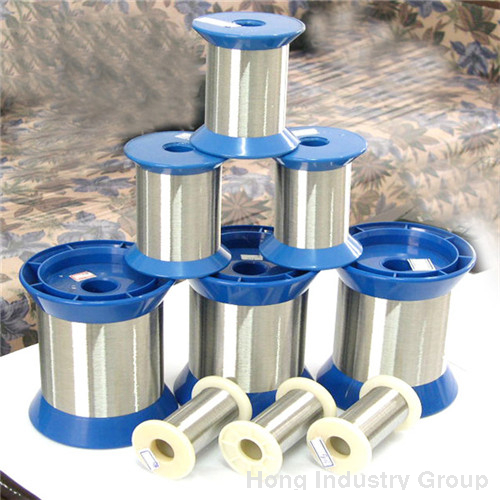

304304l is the most widely used stainless steel and is almost well known to all over the world. 304 stainless steel wire has good corrosion resistance, heat resistance and mechanical properties in the atmosphere, and is widely used in industry, decoration industry, food and medical industry. stainless steel wire diameter range is 0.002-0.125″ (0.05-3.2 mm), accord with ASTM A580 and ASTM A478, mainly used for woven mesh, binding wire and other purposes.
Chemical Composition
| Chemical Composition, % | ||||||||
| Type | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | N, ≤ |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 18.00-20.00 | 8.00-10.50 | 0.10 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 18.00-20.00 | 8.00-10.50 | 0.10 |
Annealed SS 304 304L Wire
304 annealed stainless steel wire is mainly used for stainless steel fine mesh and wire binding, tensile strength is up to 700 MPa (100,000 psi).
Cold Drawn SS 304 304L Wire
304 cold drawn stainless steel wire is mainly used for coarse mesh, welded wire mesh, tensile strength is 830-1030 MPa (120,000 – 150,000 psi).
For spring applications, the tensile strength is shown as follows:
| Tensile Strength | |||
| in. | mm | ksi | MPa |
| d≤0.009 | d≤0.23 | 325-355 | 2240-2450 |
| 0.009<d≤0.010 | 0.23<d≤0.25 | 320-350 | 2205-2415 |
| 0.010<d≤0.011 | 0.25<d≤0.28 | 318-348 | 2190-2400 |
| 0.011<d≤0.012 | 0.28<d≤0.30 | 316-346 | 2180-2385 |
| 0.012<d≤0.013 | 0.30<d≤0.33 | 314-344 | 2165-2370 |
| 0.013<d≤0.014 | 0.33<d≤0.36 | 312-342 | 2150-2360 |
| 0.014<d≤0.015 | 0.36<d≤0.38 | 310-340 | 2135-2345 |
| 0.015<d≤0.016 | 0.38<d≤0.41 | 308-338 | 2125-2330 |
| 0.016<d≤0.017 | 0.41<d≤0.43 | 306-336 | 2110-2315 |
| 0.017<d≤0.018 | 0.43<d≤0.46 | 304-334 | 2095-2300 |
| 0.018<d≤0.020 | 0.46<d≤0.51 | 300-330 | 2070-2275 |
| 0.020<d≤0.022 | 0.51<d≤0.56 | 296-326 | 2040-2250 |
| 0.022<d≤0.024 | 0.56<d≤0.61 | 292-322 | 2015-2220 |
| 0.024<d≤0.026 | 0.61<d≤0.66 | 291-320 | 2005-2205 |
| 0.026<d≤0.028 | 0.66<d≤0.71 | 289-318 | 1995-2190 |
| 0.028<d≤0.031 | 0.71<d≤0.79 | 285-315 | 1965-2170 |
| 0.031<d≤0.034 | 0.79<d≤0.86 | 282-310 | 1945-2135 |
| 0.034<d≤0.037 | 0.86<d≤0.94 | 280-308 | 1930-2125 |
| 0.037<d≤0.041 | 0.94<d≤1.04 | 275-304 | 1895-2095 |
| 0.041<d≤0.045 | 1.04<d≤1.14 | 272-300 | 1875-2070 |
| 0.045<d≤0.050 | 1.14<d≤1.27 | 267-295 | 1840-2035 |
| 0.050<d≤0.054 | 1.27<d≤1.37 | 265-293 | 1825-2020 |
| 0.054<d≤0.058 | 1.37<d≤1.47 | 261-289 | 1800-1990 |
| 0.058<d≤0.063 | 1.47<d≤1.60 | 258-285 | 1780-1965 |
| 0.063<d≤0.070 | 1.60<d≤1.78 | 252-281 | 1735-1935 |
| 0.070<d≤0.075 | 1.78<d≤1.90 | 250-278 | 1725-1915 |
| 0.075<d≤0.080 | 1.90<d≤2.03 | 246-275 | 1695-1895 |
| 0.080<d≤0.087 | 2.03<d≤2.21 | 242-271 | 1670-1870 |
| 0.087<d≤0.095 | 2.21<d≤2.41 | 238-268 | 1640-1850 |
| 0.095<d≤0.105 | 2.41<d≤2.67 | 232-262 | 1600-1805 |
| 0.105<d≤0.115 | 2.67<d≤2.92 | 227-257 | 1565-1770 |
| 0.115<d≤0.125 | 2.92<d≤3.17 | 222-253 | 1530-1745 |
| 0.125<d≤0.135 | 3.17<d≤3.43 | 217-248 | 1495-1710 |
| 0.135<d≤0.148 | 3.43<d≤3.76 | 210-241 | 1450-1660 |
| 0.148<d≤0.162 | 3.76<d≤4.11 | 205-235 | 1415-1620 |
Tolerance
| Diameter (mm) | Tolerance (mm) |
| 0.020-0.049 | +0.002, -0.001 |
| 0.050-0.074 | ±0.002 |
| 0.075-0.089 | ±0.002 |
| 0.090-0.109 | +0.003, -0.002 |
| 0.110-0.169 | ±0.003 |
| 0.170-0.184 | ±0.004 |
| 0.185-0.199 | ±0.004 |
| 0.200-0.299 | ±0.005 |
| 0.300-0.310 | ±0.006 |
| 0.320-0.499 | ±0.006 |
| 0.500-0.599 | ±0.006 |
| 0.600-0.799 | ±0.008 |
| 0.800-0.999 | ±0.008 |
| 1.00-1.20 | ±0.009 |
| 1.20-1.40 | ±0.009 |
| 1.40-1.60 | ±0.010 |
| 1.60-1.80 | ±0.010 |
| 1.80-2.00 | ±0.010 |
| 2.00-2.50 | ±0.012 |
| 2.50-3.00 | ±0.015 |
| 3.00-4.00 | ±0.020 |
| 4.00-5.00 | ±0.020 |
